Inteli-Power® 4600 Series
Upgrade or replacement for many RV power center converter/chargers with built-in Charge Wizard®
- Charge Wizard 4-State charging system built-in.
- Dramatically increases battery life.
- This converter/charger will not boil the battery!
- 55 Amp (PD4655V), 45 Amp (PD4645V) and 35 Amp (PD4635V) models available.
- The intelligent way to charge and maintain your RV battery.
- Easy to install.

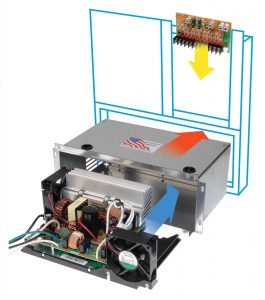

- A metal enclosure is included in every package for replacement Parallax/Magnatek 6300 Series or 7300 Series Converter.
Compatible Replacement Sections
Inteli-Power 55 Amp Converter/Charger
Model #PD4655V replaces these converter sections:
Parallax/Magnatek #6355, Parallax #7355, Parallax #7155,
Parallax #8355, WFCO™ #8955

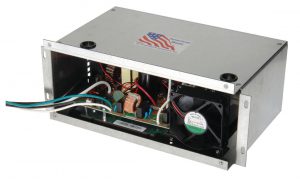

Inteli-Power 45 Amp Converter/Charger
Model #PD4645V replaces these converter sections:
Parallax/Magnatek #6345, Parallax #7345, Parallax #8345
WFCO™ #8945
Inteli-Power 35 Amp Converter/Charger
Model #PD4635V replaces these converter sections:
Parallax/Magnatek #6336, WFCO™ #8935
Features
- Reverse Battery Protection
- Total Charge Management System
- Electronic Current Limiting
- High and Low AC input protection
- Intelligent, variable speed, cooling fan
- Automatic thermal protection
- Covered by U.S. Patent 7,782,002
PD4600 Converter Replacement Section Specifications
| PD4635 | PD4645 | PD4655 | |
|---|---|---|---|
| Maximum DC Output Current | 35-Amps | 45-Amps | 55-Amps |
| Maximum Continuous Input Power | 550 watts | 725 watts | 950 watts |
| No Load DC Output Voltage | 13.6 VDC | 13.6 VDC | 13.6 VDC |
| No Load Voltage Tolerance | +/- .3 VDC | +/- .3 VDC | +/- .3 VDC |
| Full Load Output Voltage | > 12.6 VDC | > 12.6 VDC | > 12.6 VDC |
| Ripple and Noise Voltage | <50 MV RMS | <50 MV RMS | <50 MV RMS |
| Input Voltage Tolerance | 105 - 130 VAC | 105 - 130 VAC | 105 - 130 VAC |
| Input Voltage Frequency | 50-60 HZ | 50-60 HZ | 50-60 HZ |
| Peak Inrush Current | 32-Amps | 32-Amps | 47-Amps |
| Efficiency (Typical) | > 80% | > 80% | > 80% |
| Reverse Battery Protection | YES | YES | YES |
| Electronic Current Limiting | YES | YES | YES |
| Cooling Fan | Auto-variable speed | Auto-variable speed | Auto-variable speed |
| Back Up Thermal Protection | YES | YES | YES |
| Storage Temperature | 20-80C | 20-80C | 20-80C |
| Operating Temperature | 0-50C | 0-50C | 0-50C |
| Hipot Voltage Test | <-------- 1240 V @ INPUT TERMINALS --------> | ||
| Over Voltage Protection | YES | YES | YES |
| Under Voltage Protection | YES | YES | YES |
| Full Function Charge Wizard | YES | YES | YES |
| Weight | 9 lbs. | 9 lbs. | 10 lbs. |
| Dimensions | 13.25"W x 8"D x 5.38"H | 13.25"W x 8"D x 5.38"H | 13.25"W x 8"D x 5.38"H |
| Replacement Cross List: | Model # | Model # | Model # |
| WFCO | 8935 | 8945 | 8955 |
| MAGNATEK | 6336 | 6345 | 6355 |
| PARALLAX | 6336 | 7345 | 6355/7355/7155 |
* Retail and OEM Part Numbers will be determined by your selected options when you place your order.
Charge Wizard®
Inteli-Power 4600 Series models can recharge the battery to 90% in 3-6 hours using our patented Charge Wizard technology:
- BOOST Mode 14.4 Volts – Rapidly brings RV battery up to 90% of full charge.
- NORMAL Mode 13.6 Volts – Safely completes the charge.
- STORAGE Mode 13.2 Volts – Maintains charge with minimal gassing or water loss.
- EQUALIZATION Mode 14.4 Volts – Every 21 hours for a period of 15 minutes prevents battery stratification
& sulfation – the leading cause of battery failure.
