AC Distribution Center
5 Siingle – 5 Single (30Amp 120VAC / 30Amp 120VAC) with two 7 position neutral bars
Category: PD5500
Description
A split 30/30 panel accepts — LEFT SIDE: 30 Amp main and up to 8 branch circuits — RIGHT SIDE: 30 Amp main and up to 8 branch circuits. With 2 7 position Neutral bars. Color is Black.
Dimensions: 11.7″ W x 9.2″ H x 4.1″ D
Cut-out Size: 10.5″ W x 7.5″ H
Weight: 2 lbs.
Compatible with 6000 Series DC Power Distribution Panel.
Press open door for easy access to circuit breakers.

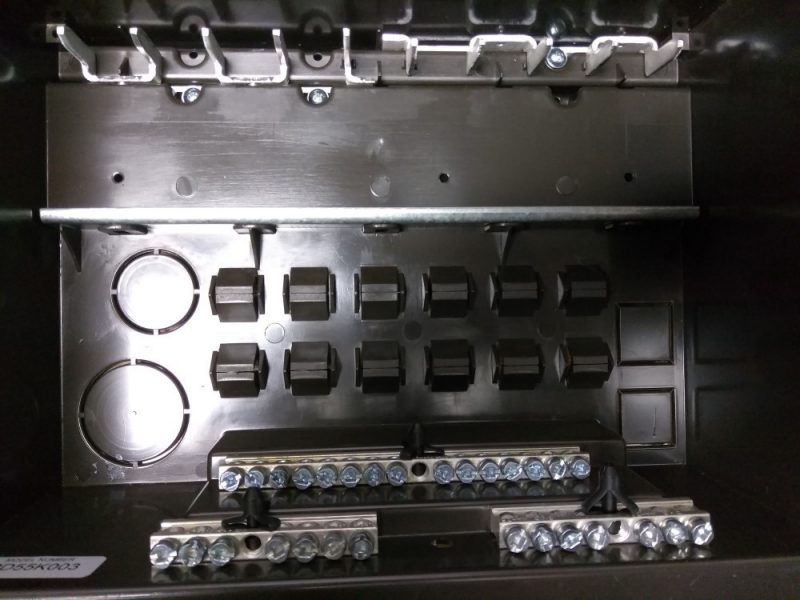

AC Panel features 12 built-in push and lock strain relief connectors. Designed with large front wiring compartment.
Additional information
Weight | 3 lbs |
---|---|
Dimensions | 14 × 11 × 6 in |
